Chapter 9: Crystal Systems – The Geometry of Mineral Structures
In Chapter 8 we saw that minerals are built from ordered, repeating arrangements of atoms. This internal order is not random. It creates patterns of symmetry that repeat in three dimensions.
Crystallographers describe these patterns using crystal systems. A crystal system is a way of grouping minerals by the overall geometry of their atomic arrangement. In this chapter, we will look at the seven crystal systems and see how they relate to the shapes we observe in real crystals.
You do not need to memorize angles or technical terms. The goal is to recognize the main “families” of crystal shapes and understand how they connect to what you see in specimens.
From Atomic Order to Crystal Shape
Inside every crystal, atoms are arranged in a repeating pattern called a crystal structure. This pattern extends in all directions and gives the mineral its internal order.
That internal order creates symmetry. If you could look at the atomic pattern from different directions, you would see that it looks the same after certain rotations or reflections. The type and amount of symmetry in a mineral’s structure determine which crystal system it belongs to.
The external shape of a well-formed crystal is often a reflection of this internal symmetry. This is why minerals in the same crystal system often share similar geometric features, even if their chemical compositions are different.
What Is a Crystal System?
A crystal system groups minerals by the shape of their basic repeating unit, called the unit cell. You can think of the unit cell as a small box that is copied again and again in all directions to build the entire crystal.
This “box” is described by:
- The lengths of its three edges (often called a, b and c).
- The angles between those edges.
Depending on how long each side is and how the corners are angled, the box belongs to one of seven crystal systems. These systems are:
- Cubic (isometric)
- Tetragonal
- Orthorhombic
- Hexagonal
- Trigonal
- Monoclinic
- Triclinic
Some textbooks group hexagonal and trigonal together; for this guide, we will treat them as closely related but separate families.

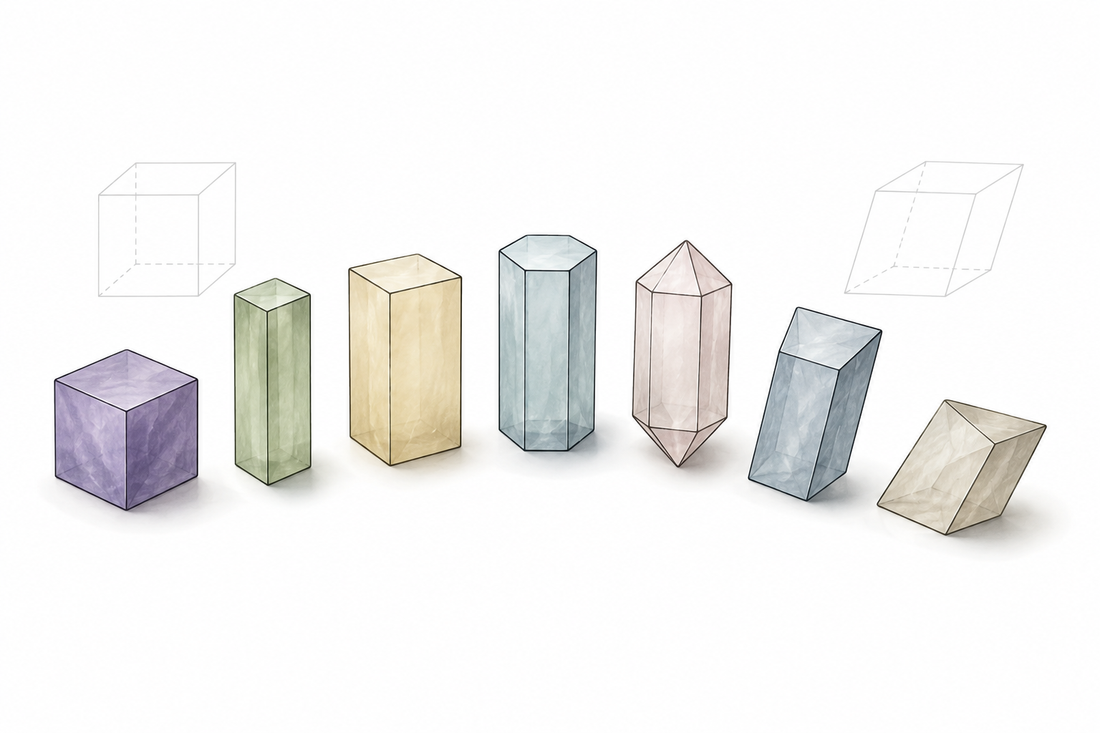

The Seven Crystal Systems
Each crystal system can be thought of as a “geometry family.” Minerals in the same family share a common basic shape at the atomic level, which often shows up in their external crystal forms.
Cubic (Isometric)
- All three edges of the unit cell are equal.
- All angles are 90°.
- This system has the highest symmetry; the pattern looks similar from many directions.
Common minerals: Garnet, Pyrite, Fluorite, Halite, Diamond.
Cubic minerals often form cubes, octahedra (eight-faced shapes), or combinations of these. For example, pyrite frequently forms near-perfect cubes, while garnet often forms rounded dodecahedra or more complex multi-faced shapes, all belonging to the cubic family.
Tetragonal
- Two edges are equal, the third is different.
- All angles are 90°.
- Like a cube that has been stretched or compressed along one direction.
Common minerals: Zircon, Rutile, Cassiterite.
Tetragonal crystals often appear as prisms with a square cross-section. They may look like elongated or shortened versions of cubic forms.
Orthorhombic
- All three edges are different.
- All angles are 90°.
- Like a box with unequal sides but right-angle corners.
Common minerals: Olivine (Peridot), Topaz, Barite, Sulfur.
Orthorhombic crystals can look like stretched or squashed versions of cubic shapes. Peridot crystals, for example, often form short, blocky prisms in this system.
Hexagonal
- Two edges are equal, the third is different.
- Two angles are 90°, one is 120°.
- Six-fold symmetry around one axis.
Common minerals: Beryl (Emerald, Aquamarine), Apatite, Nepheline.
Hexagonal minerals commonly form six-sided prisms. Emerald and aquamarine crystals typically show this classic hexagonal prism shape.
Trigonal
- Similar to hexagonal, but with three-fold symmetry instead of six-fold.
- The unit cell is closely related to the hexagonal system but with a different symmetry pattern.
Common minerals: Quartz, Calcite, Corundum (Ruby, Sapphire), Tourmaline.
Quartz is a classic example. Its familiar six-sided prisms belong to the trigonal system, not hexagonal—a common point of confusion. Calcite often forms rhombohedra (skewed cube-like shapes) that also belong to the trigonal family.
Monoclinic
- All three edges are different.
- Two angles are 90°, one is not 90°.
- Like a box where one corner is slightly tilted.
Common minerals: Orthoclase feldspar, Gypsum, Augite, Muscovite.
Many common rock-forming minerals are monoclinic. Gypsum, for example, can form tabular or prismatic crystals in this system, while muscovite forms sheet-like crystals that still follow monoclinic symmetry internally.
Triclinic
- All three edges are different.
- None of the angles are exactly 90°.
- This system has the lowest symmetry; the “box” is the most tilted.
Common minerals: Plagioclase feldspar, Microcline, Turquoise, Kyanite.
Triclinic crystals often look less regular than those in higher-symmetry systems, but they still follow a strict internal pattern. Plagioclase feldspar, for instance, commonly forms blocky or tabular crystals with subtle angular relationships.
Symmetry in Simple Terms
Symmetry means that a pattern looks the same after certain operations, such as:
- Rotation: turning the pattern around an axis.
- Reflection: looking at it in a mirror plane.
- Inversion: flipping it through a central point.
The type and amount of symmetry in a mineral’s atomic structure determine which crystal system it belongs to. Higher symmetry means the pattern repeats in more ways and looks similar from more directions.
You do not need to identify symmetry elements in a specimen. It is enough to know that crystals in the same system share a common “geometry family.”
Crystal System vs. Crystal Habit
It is important to distinguish two related ideas:
- Crystal system: the internal symmetry class (cubic, hexagonal, trigonal, etc.).
- Crystal habit: the typical external shape we see (cubes, prisms, plates, botryoidal masses, etc.).
The crystal system sets the basic geometric rules, but growth conditions, available space, and impurities influence the final habit. This is why:
- Pyrite (cubic system) often forms cubes, but can also form octahedra or complex combinations.
- Quartz (trigonal system) commonly forms six-sided prisms with pointed terminations, but can also be massive, granular, or botryoidal.
- Garnet (cubic system) rarely forms perfect cubes; it more often forms dodecahedra or trapezohedra.
Understanding this helps avoid the trap of thinking, “If it’s cubic, why isn’t it a perfect cube?” The crystal system describes the internal symmetry, not a single expected shape.
Why Crystal Systems Matter for Collectors
Knowing the basic crystal systems helps you:
- Group and compare minerals (“these all belong to the cubic family”).
- Understand why certain minerals share similar shapes.
- Read labels and descriptions with more confidence (“hexagonal prism,” “cubic crystals,” etc.).
- Appreciate specimens more deeply: you are seeing the external expression of an atomic pattern.
For example, when you see a six-sided prism of beryl and a six-sided prism of quartz, you can recognize that they belong to different crystal systems (hexagonal vs. trigonal) and have different internal symmetries, even though they look superficially similar.
Looking Ahead
We have now seen that minerals are defined not only by what they are made of and how they form, but also by the geometry of their atomic arrangement. The seven crystal systems provide a framework for understanding this geometry.
In the next chapters, we will move from these general principles to specific minerals and mineral groups. You will see how each mineral’s crystal system influences the forms you encounter in specimens, and how this knowledge helps in identifying and appreciating them.
