Chapter 10: Quartz – The Most Common Crystal

Quartz is one of the most familiar and widespread minerals on Earth. It occurs in many colors and forms, from clear, well-shaped crystals to massive, grainy rocks. Its durability, beauty and variety make it a favorite among collectors, while its abundance and stability make it a key mineral for understanding the crust.

This chapter uses quartz to connect the ideas from Part 1—chemical groups, crystal systems and formation processes—to a mineral you are likely to encounter often in specimens.

Chemical Group and Crystal System

Quartz belongs to the silicate group of minerals and, more specifically, to the framework silicates (tectosilicates) described in Chapter 6. Its chemical formula is SiO₂, meaning it is composed of silicon and oxygen in a 1:2 ratio.

It crystallizes in the trigonal crystal system. As explained in Chapter 9, trigonal minerals have three-fold symmetry. Quartz’s classic six-sided prisms are a surface expression of this internal trigonal arrangement.

How Quartz Forms

Quartz forms in a wide range of geological environments. The main settings include:

Igneous rocks: Quartz crystallizes from silica-rich magmas as they cool. It is a common mineral in granites and related rocks, where it forms interlocking grains with feldspar and mica.

Hydrothermal veins: Hot, mineral-rich fluids moving through fractures in the crust often deposit quartz as they cool. These veins can produce well-formed crystals, sometimes of gem quality.

Metamorphic rocks: Under heat and pressure, existing silica-rich rocks can recrystallize to form quartz. In some cases, new quartz grows as veins or bands.

Sedimentary environments: Quartz is highly resistant to weathering. When rocks break down, quartz grains often survive and become sand. Over time, these grains can be cemented together to form sandstone. In cavities and geodes, silica-rich water can slowly deposit quartz crystals.

This versatility explains why quartz appears in so many different rock types and localities.

Crystal Habits and Varieties

Quartz occurs in many habits and varieties. The main distinction is between macrocrystalline quartz (visible crystals) and cryptocrystalline quartz (microscopic crystals, often in compact forms).

Macrocrystalline Quartz

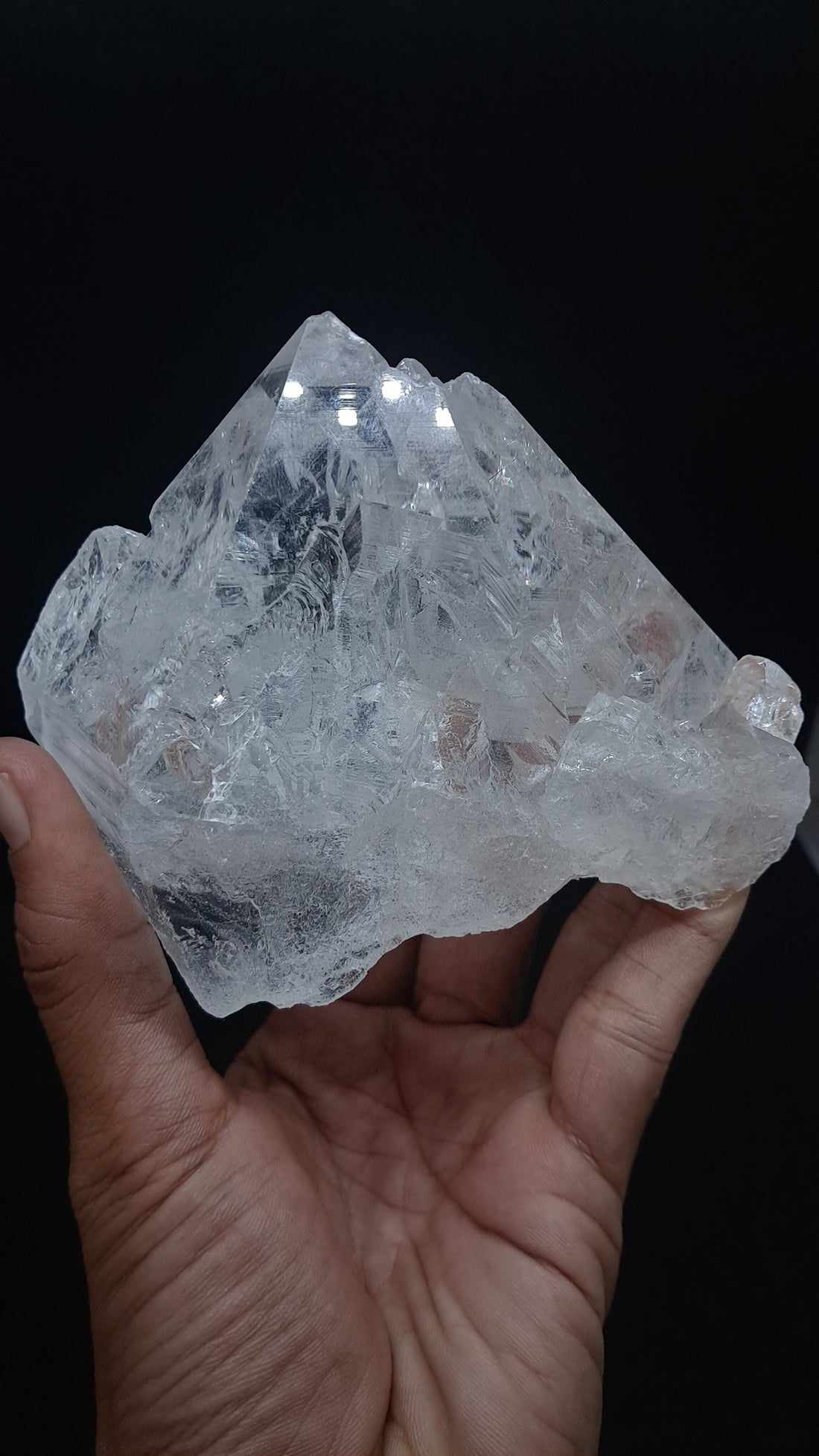

Well-formed quartz crystals typically show:

• A six-sided prism with steep sides.
• A pyramidal termination at one or both ends.
• Sometimes horizontal striations on the prism faces.

Common macrocrystalline varieties include:

Rock crystal: Clear, colorless quartz. Color is due to the absence of significant impurities; the structure is essentially pure SiO₂. Often forms sharp, transparent crystals.

Amethyst: Purple quartz. Color is caused by trace amounts of iron in the structure, together with natural irradiation over geological time. Color can range from pale lavender to deep violet.

Citrine: Yellow to orange-brown quartz. Natural citrine is often related to iron impurities and specific growth conditions; much commercial citrine is heat-treated amethyst.

Smoky quartz: Brown to nearly black quartz. Color results from natural irradiation acting on trace impurities (often aluminum or other elements) within the crystal.

Rose quartz: Pink quartz, usually massive rather than well-crystallized. Color is commonly attributed to trace titanium, iron or manganese, and in some cases to microscopic inclusions of other minerals.

These varieties often occur in veins, cavities and geodes, sometimes alongside other minerals such as calcite, fluorite or metal sulfides.

Cryptocrystalline Quartz: Chalcedony, Agate and Jasper

In some settings, quartz grows as extremely fine crystals that cannot be seen individually. This material is called chalcedony. It includes:

Agate: Banded chalcedony, often in cavities of volcanic rocks. Bands can be straight, curved or concentric. Color is influenced by trace iron, manganese and other elements.

Jasper: Opaque, often red, brown or yellow chalcedony, colored mainly by fine iron oxide impurities.

Other forms such as carnelian (orange-red, iron-related) and chrysoprase (apple-green, nickel-related) are also varieties of chalcedony.

These forms are widely used in ornamental stones and cabochons, and they make attractive matrix specimens when found in natural geodes or seams.

Physical Properties in Simple Terms

When handling quartz specimens, a few properties are especially useful to know:

Hardness: Quartz is hard (7 on the Mohs scale). It can scratch glass and is resistant to abrasion. This hardness contributes to its durability in specimens and jewelry.

Cleavage and fracture: Quartz has no true cleavage. When broken, it shows a smooth, curved break called conchoidal fracture. This is visible on broken surfaces of rock crystal or on ancient stone tools made from quartz-rich rocks.

Luster: Crystalline quartz typically has a vitreous (glass-like) luster on fresh surfaces. Chalcedony and jasper often appear more waxy or dull.

Transparency: Quartz ranges from transparent (rock crystal) to translucent (many colored varieties) to opaque (jasper, some agates).

Specific gravity: Quartz is relatively light compared to many metallic minerals, but this property is less useful without instruments.

These properties help explain why quartz is both common in nature and popular with collectors.

Industrial and Technological Uses of Quartz

Quartz is not only a collector’s mineral; it is also industrially important. Its uses are closely linked to the physical properties described above.

Hardness and chemical stability: Crushed quartz is used as sand in glassmaking, foundry molds and abrasives. Its resistance to weathering makes it valuable in construction materials and filtration media.

Piezoelectricity: Quartz crystals generate an electric charge when mechanically stressed, and vibrate at a precise frequency when an electric field is applied. This property is used in oscillators that control timing in watches, clocks, radios and many electronic devices.

Optical properties: Clear, flaw-free quartz is transparent to ultraviolet light and is used in some specialized lenses and optical instruments.

High-temperature stability: Quartz glass (fused silica) is used in laboratory equipment, high-temperature lamps and technical applications where ordinary glass would fail.

Much of the quartz used in industry is not gem-quality crystal but high-purity quartzite or sand. Still, the same fundamental properties—hardness, stability and ordered structure—make both specimen quartz and industrial quartz valuable in different ways.

Quartz in the Field and in Collections

Quartz is found on every continent and in many geological settings. Some common occurrences include:

• Granite and pegmatite bodies, where quartz forms interlocking grains with feldspar and mica.
• Hydrothermal veins, often as clear or colored crystals lining cavities.
• Geodes and vugs, where quartz crystals grow inward from the walls, sometimes with other minerals.
• Alluvial deposits, where quartz grains and pebbles accumulate in riverbeds and sediments due to their resistance to weathering.

Collectors value quartz for several reasons:

• Clarity and form: Well-formed, transparent crystals are aesthetically striking.
• Color variety: Amethyst, citrine, smoky and rose quartz offer a wide palette.
• Associations: Quartz often grows with other minerals, creating visually interesting combinations.
• Durability: Its hardness makes it resistant to damage, which is helpful for both display and handling.

When buying quartz, it is useful to remember that some material on the market is heat-treated or synthetic. Natural, unaltered specimens, especially with intact matrix and clear growth features, are often more interesting from a geological perspective.

Why Quartz Matters Geologically

Quartz is more than a popular collector’s mineral. It plays a central role in the composition and behavior of Earth’s crust:

• It is a major component of many continental crust rocks, especially granites and sandstones.
• Its resistance to chemical weathering means that quartz grains often dominate sand and sedimentary rocks.
• Because it is stable over a wide range of conditions, quartz preserves information about the environments in which it formed.

In this sense, quartz is a bridge between the deep geological processes described in Part 1 and the minerals we see and collect at the surface.

Looking Ahead

Quartz is as versatile as it is widespread. It not only forms in different colours, but also in different shapes. In the next chapter, we will closely look at various formations of Quartz that collectors so adore.
