Chapter 6: Mineral Classification and Structure

Minerals form in diverse environments, from molten magma to evaporating lakes, yet their diversity is not chaotic. Beneath their colors, shapes, and origins lies a systematic chemical and structural order. Minerals are classified not merely for convenience, but because their atomic architecture follows consistent rules. In this chapter, we move from how minerals form to how they are organized, exploring the major mineral groups and the structural principles that define them.

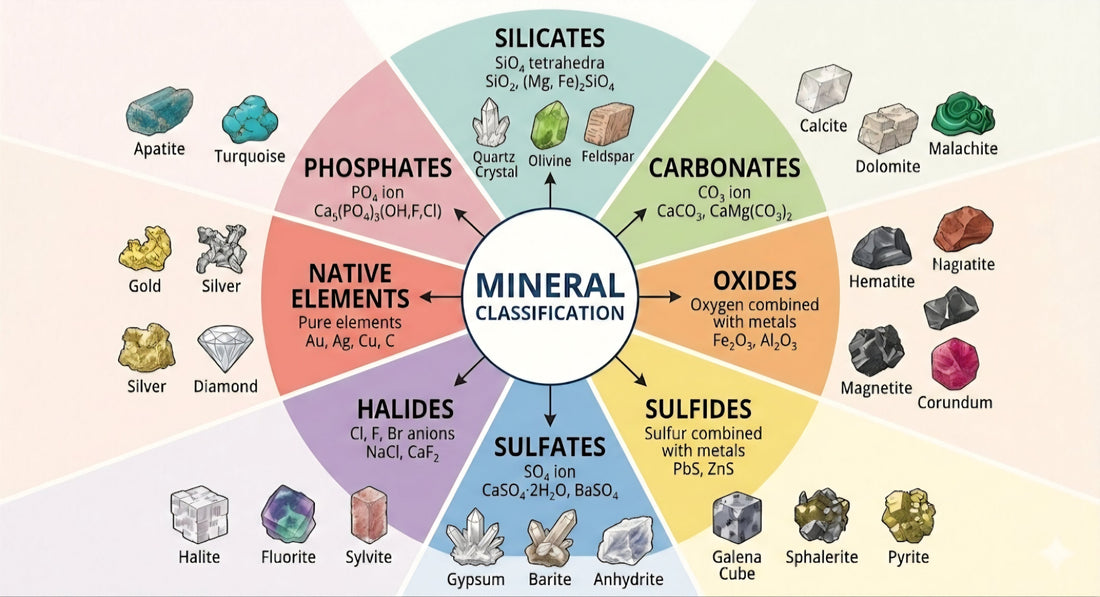

6.1 What Is a Mineral Group?

A mineral group is a classification of minerals that share a common chemical component and a similar internal structure. Most mineral classification systems are based on the dominant anion or anionic complex, the negatively charged part of a compound.

For example:

• Silicates are built around silicon–oxygen units (SiO₄)⁴⁻
• Carbonates contain the carbonate group (CO₃)²⁻
• Sulfates contain (SO₄)²⁻
• Oxides are based on oxygen bonded to metals (O²⁻)
• Sulfides contain sulfur (S²⁻)

The dominant anion group strongly influences:

• Crystal structure
• Bonding type
• Physical properties
• Geological environment of formation

This is why silicates behave differently from carbonates, and why oxides often have very different hardness and density compared to sulfides.

6.2 The Silicates – Earth’s Structural Framework

Silicates are by far the most abundant mineral group, making up roughly 90% of Earth’s crust. Their dominance is due to the abundance of silicon and oxygen in the planet’s outer layers.

All silicate minerals are built from a fundamental structural unit:

The Silicon–Oxygen Tetrahedron (SiO₄)⁴⁻

This structure consists of:

• One silicon atom at the center
• Four oxygen atoms at the corners
• Arranged in a tetrahedral geometry

The tetrahedron carries a negative charge and must bond with metal cations (positively charged) such as:

• Magnesium (Mg²⁺)
• Iron (Fe²⁺ / Fe³⁺)
• Calcium (Ca²⁺)
• Sodium (Na⁺)
• Potassium (K⁺)
• Aluminum (Al³⁺)

What makes silicates extraordinary is their ability to polymerize. Polymerization means individual tetrahedra share oxygen atoms with one another, forming increasingly complex structures.

Types of Silicate Structures

• Isolated Tetrahedra (Nesosilicates), Example: Olivine (Mg,Fe)₂SiO₄
• Single Chains (Inosilicates), Example: Pyroxene (general formula XY(Si,Al)₂O₆)
• Double Chains (Inosilicates), Example: Amphibole (complex hydrous silicates)
• Sheets (Phyllosilicates), Example: Micas and clay minerals
• Frameworks (Tectosilicates), Example: Quartz (SiO₂), Feldspar (KAlSi₃O₈ – NaAlSi₃O₈ – CaAl₂Si₂O₈)

The increasing degree of tetrahedral sharing directly influences hardness, cleavage, and stability.

6.3 Non-Silicate Mineral Groups

Although less abundant than silicates, non-silicates are extremely important economically and chemically.

1. Carbonates (CO₃)²⁻, common in sedimentary rocks such as limestone. Often form in marine environments. Example: Calcite (CaCO₃)
2. Oxides (O²⁻), important iron ores. Typically dense and often metallic. Example: Hematite (Fe₂O₃), Magnetite (Fe₃O₄)
3. Sulfides (S²⁻), common ore minerals formed in hydrothermal environments. Example: Galena (PbS), Pyrite (FeS₂)
4. Sulfates (SO₄)²⁻, often form through evaporation. Example: Gypsum (CaSO₄·2H₂O)
5. Halides, typically form in evaporite environments. Example: Halite (NaCl), Fluorite (CaF₂)
6. Phosphates (PO₄)³⁻, often formed in igneous, metamorphic, and sedimentary environments. Economically important in fertilizers. Example: Apatite (Ca₅(PO₄)₃(F,Cl,OH))
7. Native Elements, composed of a single element in uncombined form. Example: Gold (Au), Silver (Ag), Copper (Cu)

6.4 Crystal Structure and Atomic Arrangement

While chemical composition defines mineral groups, crystal structure determines physical behavior. A crystal structure refers to the orderly, repeating arrangement of atoms in three-dimensional space. This repeating pattern is called a crystal lattice. The smallest repeating unit of that lattice is known as the unit cell.

The geometry of the unit cell determines:

• Symmetry
• Cleavage planes
• Optical properties
• Density
• Hardness

Two minerals can share the same chemical formula but have different crystal structures. This phenomenon is known as polymorphism.

Example: Graphite (C) and Diamond (C)

Both are pure carbon, yet their atomic arrangements differ dramatically — producing completely different physical properties.

6.5 Why Classification Matters

Mineral classification is not just academic categorization. It allows us to:

• Predict physical and chemical properties
• Understand geological processes
• Identify economically important resources
• Organize gemstones and mineral families
• Recognize structural relationships between minerals

Once we understand a mineral’s group and structure, we can anticipate how it behaves — whether it cleaves easily, resists weathering, or forms under specific temperature and pressure conditions.

In this chapter, we explored how minerals are organized into systematic groups based on chemical composition and atomic structure. From the dominance of silicates to the economic importance of sulfides and oxides, classification reveals the structural logic behind Earth’s mineral diversity.
